Gloss Meter

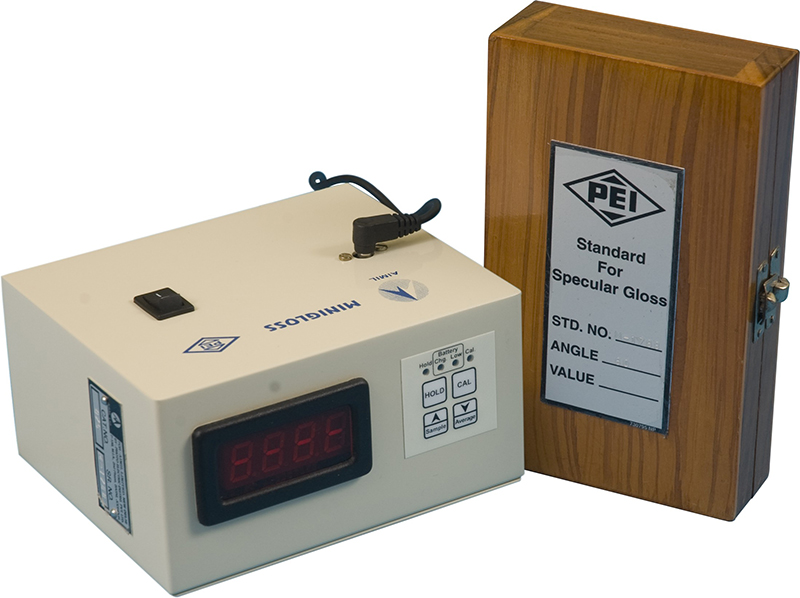

Piyush Technologies offers CES-502 Economy Gloss Meter 60°. Gloss is an important aspect of our visual perception of objects. The perception of gloss can relate to a product’s finish, texture and how a sample is illuminated and viewed. Surfaces with high reflectance are perceived as glossy, shiny or lustrous, whilst less reflective surfaces are perceived as semi-gloss or matt. Gloss can be measured by several different techniques. One of them is by using an optical instrument called a gloss meter. A glossmeter provides quantifiable gloss measurements, expressed as gloss units (GU).

CES series gloss meter is independently developed with intellectual property, manufactured according to international standard ISO2813 and China standard GB/T 9754. With auto-calibration and high-end QC software, it can meet the first grade requirements of JJG696.

CES-502 60° Economy Gloss Meter test material with gloss (0-1000Gu), and universally apply to paint, ink, stoving varnish, coating, wood products; marble, granite, vitrified polished tile, pottery brick and porcelain; plastic, paper; hardware industries, etc. for gloss measurement and gloss data transmission.

Product Features:

1. Elegant Design combined with aesthetics and ergonomics;
2. With auto-calibration function;
3. Meet the first grade requirements of JJG696;
4. Large storage to save over 35000 data;
5. Auto Power-off within optional 30-120 seconds;
6. Comply to ISO2813,ASTM523, GB/T9754;
7. With PC software for quality report, more extend functions;
8. With multi working modes and multi-functions for most customers’ requirements.

Applications:

The gloss meter is used in many industries from paper mills to automotive and are used by the producer and the user alike.

Examples include:

Paints & Coatings, Powder Coatings, Additives, Inks, Plastics, Paints, Coating, Plastics, Ink, Rubber, Printing, Paper, Glass, Handware, Ceramic, Marble, Wood Coatings, Polishes And Flooring, Yacht Manufacture, Automotive Manufacture And Re-Finis, Aerospace, Polished Stone And Metals, Consumer Electronics, Anodized Metals

Ordering Information:

Piyush Technologies offer a comprehensive range of single, dual & triple angle glossmeters and DOI meters, which provide Gloss, % Reflectance, and Haze measurements on a wide range of surfaces.

The CES Series Gloss Meter is available as either a simple entry level 60° gloss meter or state of the art Single, Dual or Triple Angle Glossmeter with % Reflectance and Haze measurement capability.
